RGBDigit Shield 4x 1'RGBDigit + clock (DS3231SN) + IR set

Shield

Nieuw product

Multi function UNO  RGBDigit segment Shield + Clock IC (DS3231) + IR set

Adafruit NeoPixel ARDUINO library driven

Goto Free sample/debug/test download’s

Meer details

Dit product is niet meer op voorraad

64,84 €

Meer informatie

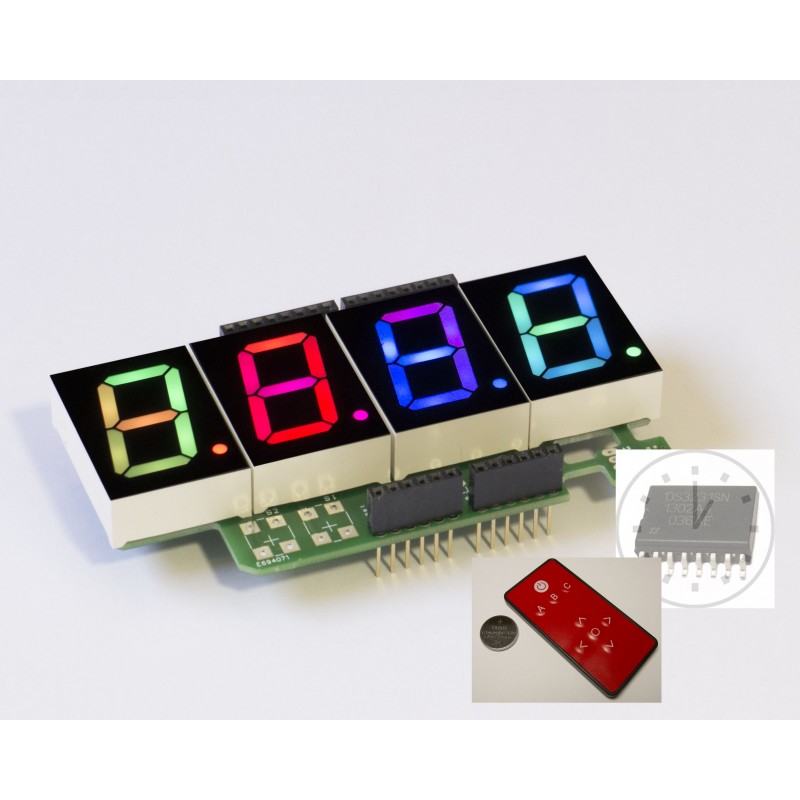

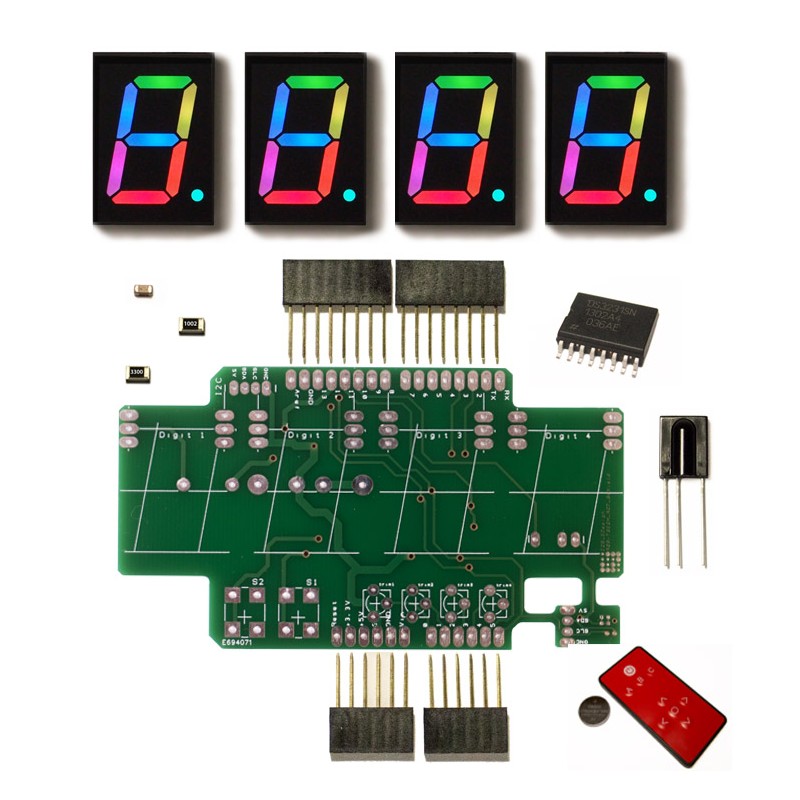

Multi function UNO  RGBDigit segment Shield 4X RGBDigit,
Clock DS3231SN and IR set reciever and remote control

Adafruit NeoPixel ARDUINO library driven.

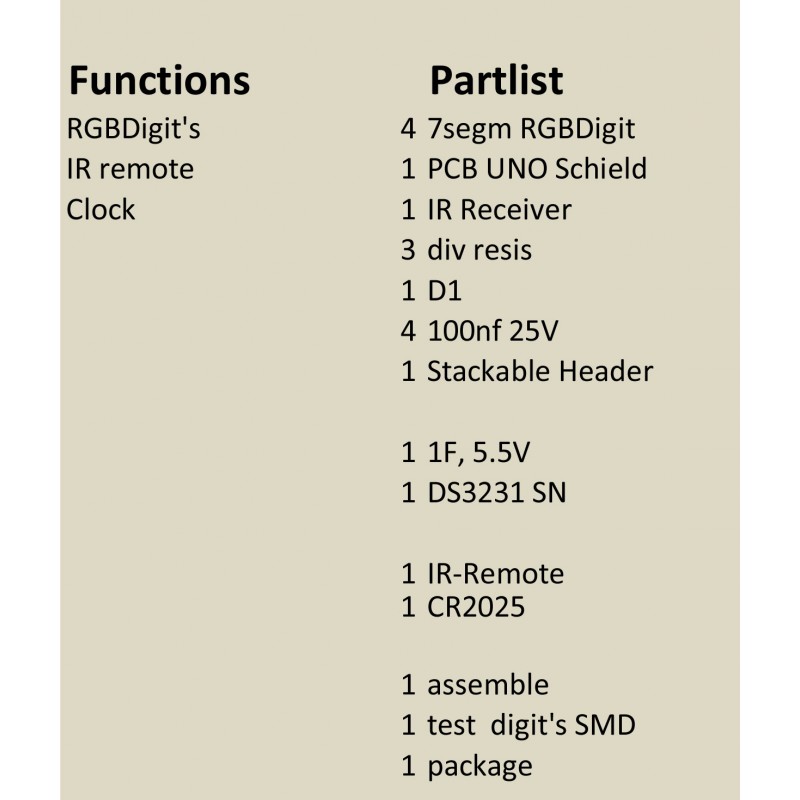

Main function:

- 4x RGBDigit multi color digits

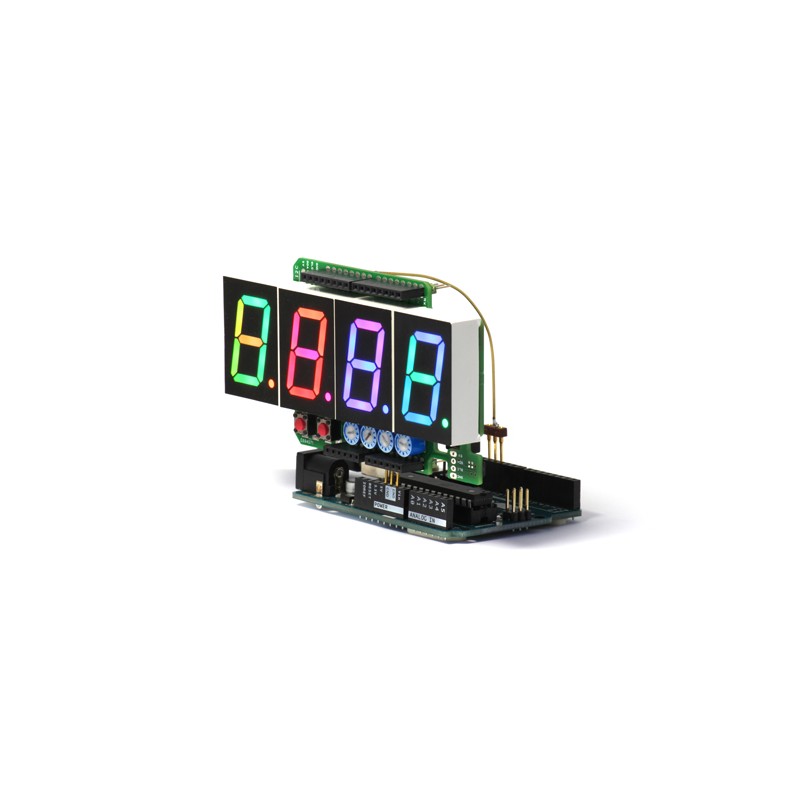

- Buld for Arduino UNO
- Adafruit NeoPixel ARDUINO library driven
- 16581375 colors each segment
- clarity up to 255 steps
- created for Arduino UNO

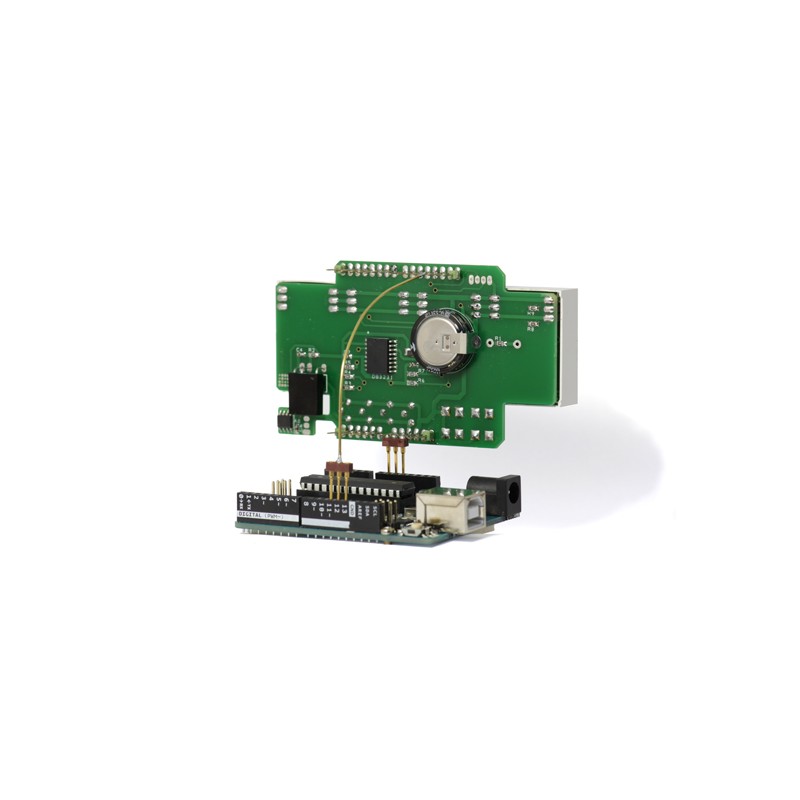

- 1 DS3231 highly accurate I2C clock with 1F backup cap
- 1 IR sensor and remote control
- each value can have its own color
- sample code available
- assembled, tested

Optional functions:
- very accurate Temp sensor LM92  -25 to 150 °C Resolution 0.0625°C
- 4 analog inputs trimmers
- 2 switches

Possible applications
- Panel / measuring systems with upper and lower range.
- Temperature, weight, energy, scales, wind meter and speed functions.
- Score board's
- Built-in all white goods (ECO mode).
- Design objects
- Clock 4 digit programs
- Fitness equipment
- Multimeters
- of course you can create your own application



See video for life 6 digit clock Demo



The picture color’s are real life with a clarity of 30 out of 255.

Downloads:
RGBdigit shield discription
connection diagram Arduino UNO
Goto Free sample/debug/test download’s

Download the RGBDigit Datasheet for more technical info
compatible to Adafruit NeoPixel Arduino library

NOTE:
For safe use see detailed safety/connection data the RGBDigit’s are not hot swappable.
