Sale! RGBDigit back-bone Basic View larger

RGBDigit back-bone Basic

New product

RGBDigit back-bone Base
Connect up to 6 RGBDigit's

Adafruit NeoPixel ARDUINO library driven.

5V   Di  GND wire only

More details

40 Items

4,20 €

More info

Adafruit NeoPixel ARDUINO library driven.

Main function:

- Connects up to 6X RGBDigit multi color digits
- Adafruit NeoPixel ARDUINO library driven
- 16581375 colors each segment
- clarity up to 255 steps
- Controled with o.a. Arduino UNO
- sample code available


Downloads:

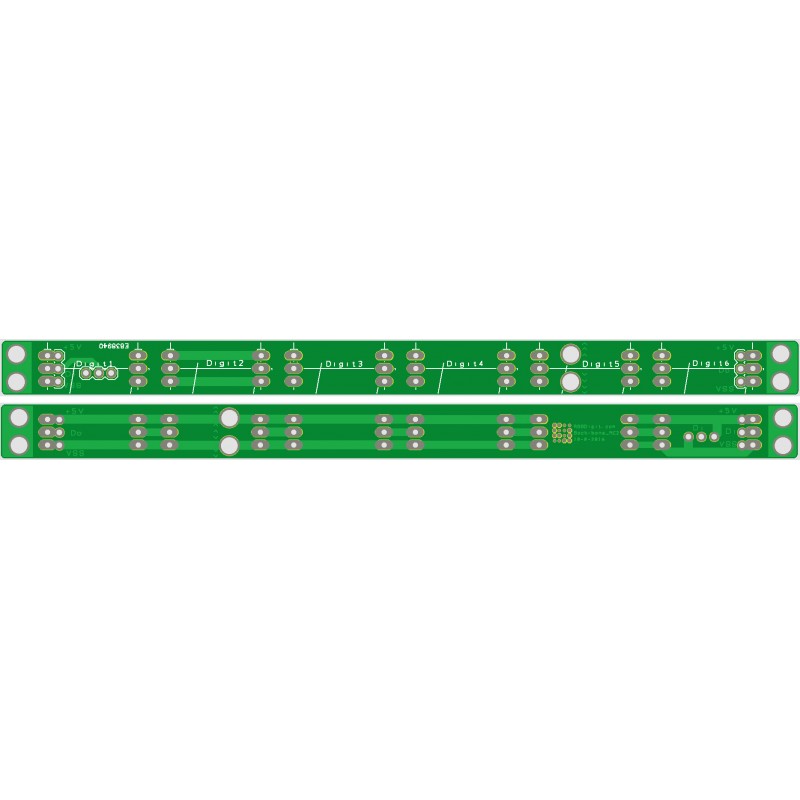

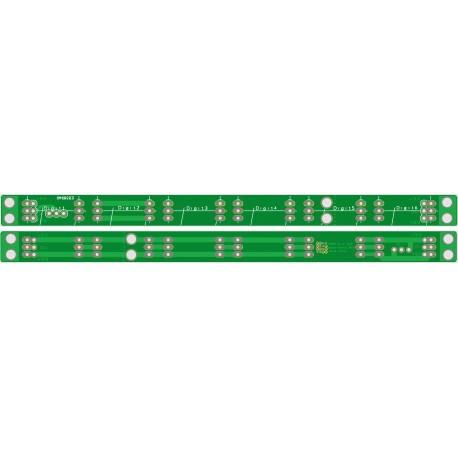

Back-Bone-basis_PCB

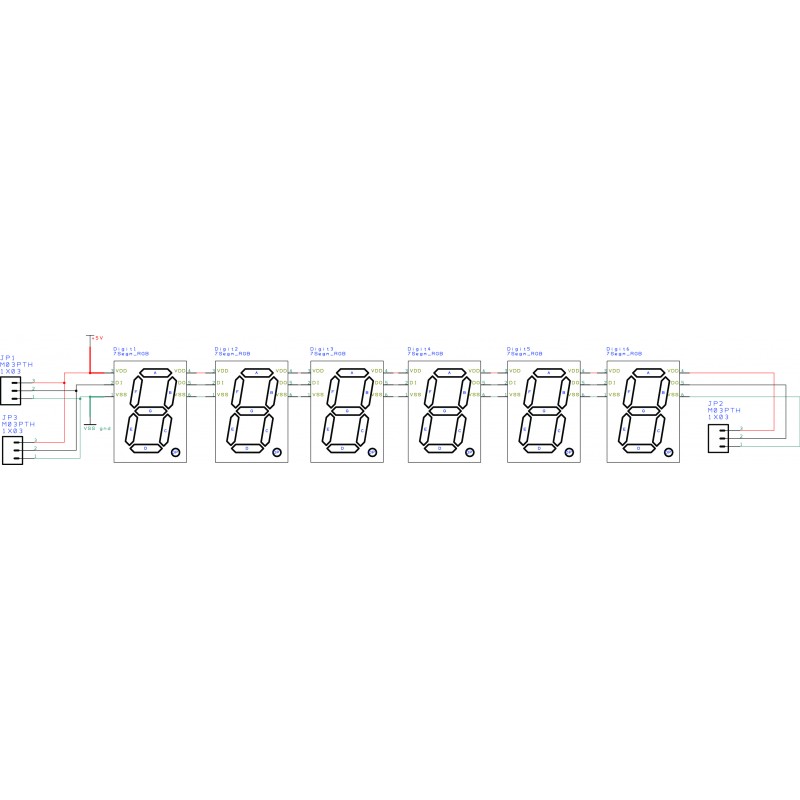

RGB-B-bone_basic_scheme

Free sample/debug/test download’s
Download the RGBDigit Datasheet for more technical info
compatible to Adafruit NeoPixel Arduino library

NOTE:
For safe use see detailed safety/connection data the RGBDigit’s are not hot swappable.

https://learn.adafruit.com/adafruit-neopixel-uberguide/arduino-library

Possible applications

- Panel / measuring systems with upper and lower range.
- Temperature, weight, energy, scales, wind meter and speed functions.
- Score board's
- Built-in all white goods (ECO mode).
- Design objects
- Clock 4 digit programs
- Fitness equipment
- Multimeters
- of course you can create your own application
