RGBDigit 08" full color 7 Segement

New product

RGBDigit   0.8" 7-Segment full RGBcolor
These 0.8 "are technically the same as the 1" version.
Adafruit NeoPixel ARDUINO library driven
Only 3 wires in and out

Scroll or click for more detail info.

Action   5,50 € pp > 4

Goto Free sample/debug/test download’s

More details

36 Items

in stock

6,40 €

5,50 € per 4

Volume discounts

Quantity Price You Save
4 0,45 € Up to 23,80 €

More info

RGBDigit   0.8" 7-Segment full RGBcolor    These 0.8 "are technically the same as the 1" version.
Adafruit NeoPixel ARDUINO library driven.  Only 3 wires in and out

RGBDigit’s are a full color 0.8” 7-segment display with a RGB LED in every single segment. The digit’s and Controller will be connected with only three wires which makes using and connecting them very simple, the Adafruit NeoPixel Arduino library does the job. Each segment can be one of the 16581375 colors and all the segments can have a clarity up to 255 average use is 30 out of 255.

The RGBDigit’s can be used on a  breadboard or you can join them (up to 4) on a RGBdigit UNO shield
see shield section in the webshop of course you can use them in your own project.

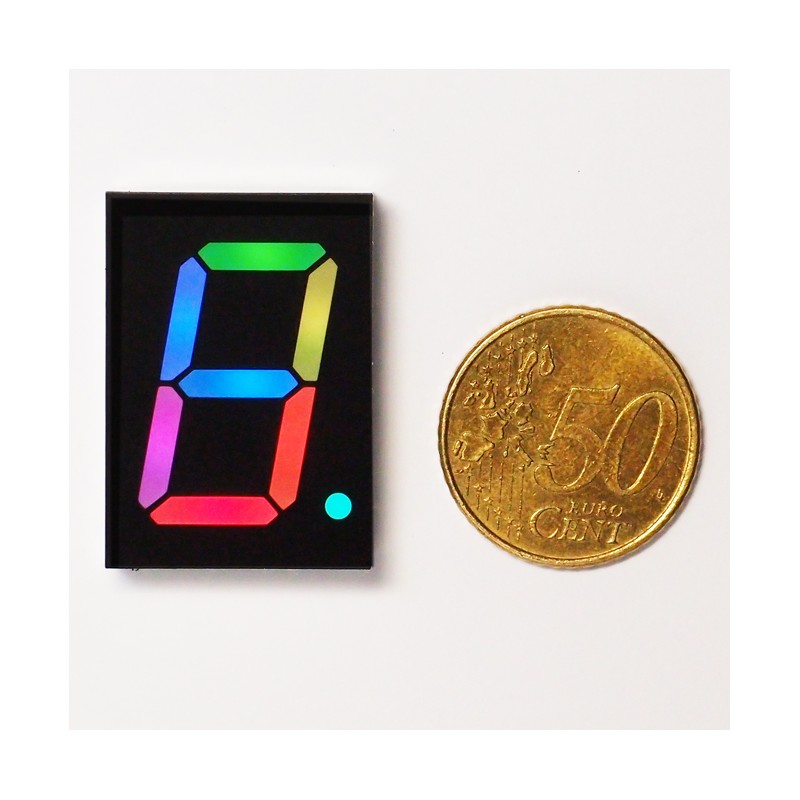

The picture color’s are real life with a clarity of 30 out of 255.

- Arduino driven
- 16581375 colors each segment
- clarity up to 255 steps
- Power max 5V
- up to 10 Digit’s cascade

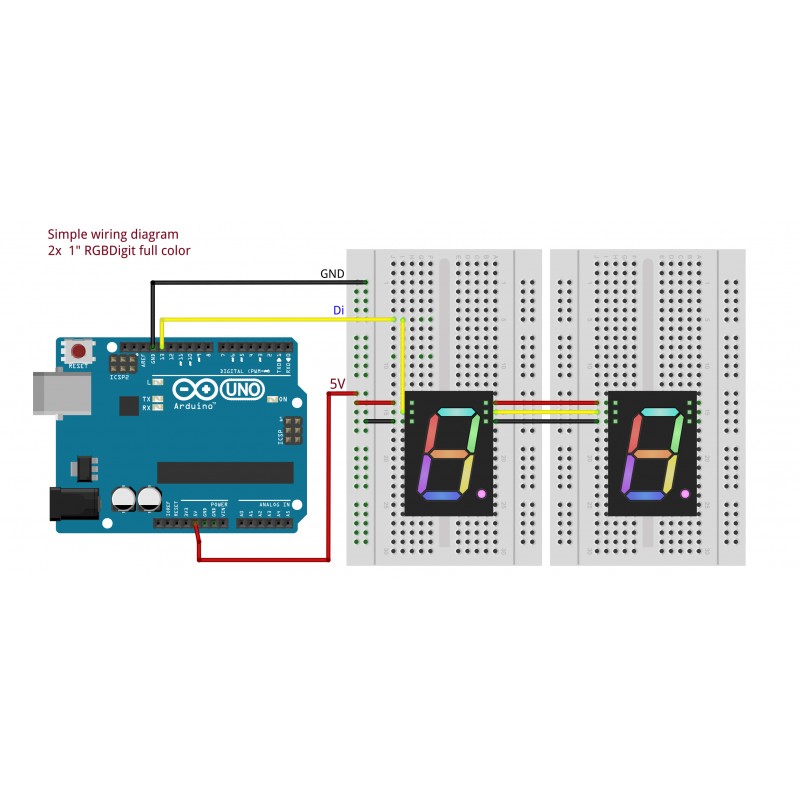

connection diagram Arduino UNO
Goto Free sample/debug/test download’s
- Download the RGBDigit Datasheet for more technical info
- compatible to Adafruit NeoPixel Arduino library

For safe use see detailed safety/connection data the RGBDigit’s are not hot swappable.
