RGBDigit back-bone Basic 0,8"
New product
RGBDigit back-bone Base 0,8"
Connect up to 6 RGBDigit's
Adafruit NeoPixel ARDUINO library driven.
5V Di GND wire only
12 Items
More info
Adafruit NeoPixel ARDUINO library driven.
Main function:
- Connects up to 6X RGBDigit multi color digits
- Adafruit NeoPixel ARDUINO library driven
- 16581375 colors each segment
- clarity up to 255 steps
- Controled with o.a. Arduino UNO
- sample code available
Downloads:

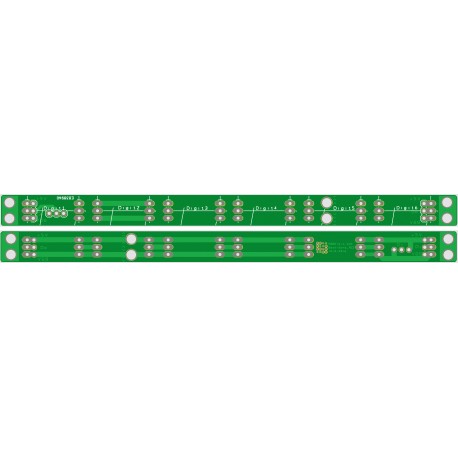

- Back-Bone-basis_PCB 0,8"
- RGB-B-bone_basic_scheme
- Free sample/debug/test download’s
- Download the RGBDigit Datasheet for more technical info
- compatible to Adafruit NeoPixel Arduino library
NOTE:
For safe use see detailed safety/connection data the RGBDigit’s are not hot swappable.
https://learn.adafruit.com/adafruit-neopixel-uberguide/arduino-library
Possible applications
- Panel / measuring systems with upper and lower range.
- Temperature, weight, energy, scales, wind meter and speed functions.
- Score board's
- Built-in all white goods (ECO mode).
- Design objects
- Clock 4 digit programs
- Fitness equipment
- Multimeters
- of course you can create your own application
